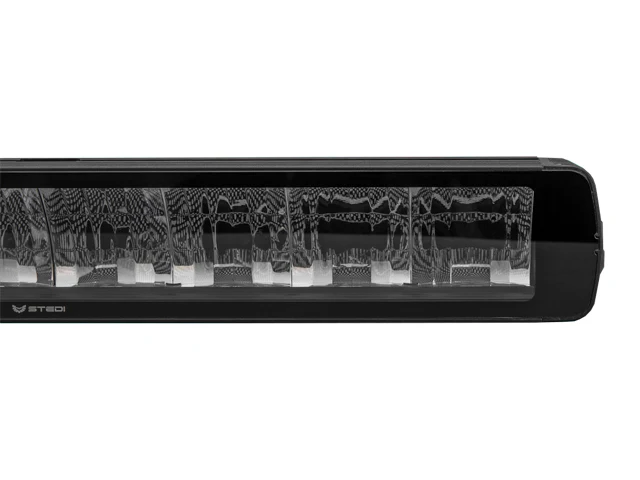

STEDI ST-X 50 inch LED Light Bar (Each) - LEDST-X-50-20L

ELECTRIFYING PERFORMANCE.

At the core of the ST-X 50 Inch you will find world-class A grade 15W reverse facing emitters pushing out 10, 000 Lumens at a stunning 5000K colour temperature. The 30-degree horizontal beam pattern facilitates maximum illumination at the mid to long-range, all the way out to 1 lux @ 941m, with very little light within the first 80m. The 15-degree vertical spread means minimal light wasted and significantly reduces glare from road signs.

A CUT ABOVE.

The circuit of ST-X allows for max output (10, 000Lm) or reduced output (2168Lm) modes, the latter making it legal for road use in New Zealand and European countries. The built-in amber (2700K) or white (6000K) DRL / Position Light function allows you to stay conspicuous day or night. The hidden placement of the separate positioning light LEDs offers stunning uniformity of light distribution within the light bar.

NEAR INVISIBLE FRAME.

The STEDI name has always been synonymous with cutting edge design. Now, we yet again raise the bar with our all-new edge to edge bonded lens design. If Apple were to design a light bar, this would be it. It"s stunning from every angle.

STEDI ST-X 50 inch LED Light Bar (Each) - LEDST-X-50-20L

THE NITTY-GRITTY.

THE BEAM PATTERN

If you're looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

Significantly minimises adverse reflection from road signs
Controlled vertical spread minimises reflections off of high-mounted road signs.

KEY FEATURES

4x 15W LEDs
LED Parking / Position Light Function (Amber or White built-in)
Breather allows pressure equalisation when rapid heat up and cool down cycles occur
Anodized Polyester Powder Coat
Weatherproof Deutsch® DTP Connector
Includes adjustable Side brackets & Sliding bottom brackets
Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
Protected against reverse polarity
Shockproof, IP68 waterproof, UV Shielded
Protected Against RFI / EMC Interference
Voltage & current surge protection
Pulse Width Modulation Thermal Management

TECH SPECS

VOLTAGE	9-36V
AMPERES	22.64A @ 12V (full power), 2.75A @ 12V (limit power)
POWER	271.68W (full power), 33W (limit power)
LUMENS	10000LM (full power), 2168LM (limit power)
COLOUR TEMPERATURE	5000K
AMP RATING	0.7a
PHOTOMETRIC DATA	1 lux @ 941m (full power). 1 lux @ 433m (limit power)
LENS MATERIAL	Optical grade, Hard-Coated LEXAN
HOUSING MATERIAL	6063 Extrusion
INGRESS PROTECTION	IP68
CANDELAS	886807 @ full power, 187814 @ limit power
CONNECTOR	60cm Cable with DTP 4in
CERTIFICATES	R112, ref. 45 and R10
LIFESPAN	50, 000hrs (LM80)
OPERATING TEMP	-40°C ~ +60°C
PRODUCT WEIGHT	4.2kg
SHIPPING WEIGHT	5.7kg

STEDI ST-X 50 inch LED Light Bar (Each) - LEDST-X-50-20L

WHAT"S IN THE BOX

1 x 50 Inch ST-X-20L LED Light Bar
2 x Steel Side Brackets
2 x Steel Sliding Brackets
Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
Comprehensive 304 Stainless Steel fasteners
Wiring Instructions

Shipping Policy

Stedi offer the highest quality lighting solutions

Only some of these kits are stocked at PPD Performance Myaree pick-up centre, with most brought in on order with an average lead time of 1 week.

If you need a specific eta, please contact us before ordering and we will be sure to assist you.

50 inch light bar

STEDI ST-X 50 inch LED Light Bar (Each) - LEDST-X-50-20L

50" LED CURVED LIGHTBAR 1,274mm
