LandCruiser 300 Series Left Storage Drawer System

PRODUCT CODE: 41020

VEHICLE DATE: 2021-Current

PRODUCT TYPE: Single Storage Drawer System

SUITS: Toyota Landcruiser 300 Series GX/Sahara ZX/GR Sport (5 Seater)

Toyota Landcruiser

FEATURES:

100% Drawer extension for complete access
Patented “Stay-Open Block”
Rust resistant sealed bearings with Nylon rollers
Internal LED Light Strip
Safe and secure lock system
Dust resistant seal
Stainless steel fasteners
Removable wing and face panels

INCLUDES:

Complete wing kits
Cargo Barrier mounting points
Child restraint points
MSA 4X4’s Lifetime Guarantee

Please review the shipping policy before ordering

More Information

Designed from the ground up, the way a quality 4WD storage system should be.

Sick of shoving everything loosely in the back of a vehicle? Why not get organised with an MSA 4X4 Storage Drawer System.

MSA 4X4’s Storage Drawer Systems are designed with a patented slide technology Now fitted with fully sealed, stainless steel bearings with Nylon rollers as standard. Offering a quieter, smoother operation under heavy loads and saving up to 3kg per Drawer Module. The entire drawer extends further from the frame, allowing 100% access to the drawers. No more hard-to-reach items at the back! MSA 4X4’s Storage Drawer Systems are constructed from aluminium and have anodised aluminium components. Super-strong, lightweight and comes with stainless steel fasteners used throughout for a rust-free, corrosion resistance lifetime of use.

The patented “Stay-Open Block” allows the drawer to remain in an open position even on a 30-degree slope. They also feature an LED Light Strip that activates at full extension and has a manual override switch. A 100% safe and secure lock system that can not be levered open from underneath, is an exceptional security measure. Dust resistant seals around front panels ensure all the items stored inside stay clean and dust free. Flush-fitting wing kits are available for most 4WDs and utes, creating additional storage space between the Storage Drawer System and the inner sides of the car. Access to the space is gained through removing the wing and face panels. The reinforced wing kit brackets provide a fully supported base for fridge slides to be mounted onto the wing panels, allowing for more placement options.

The impact force of an unsecured item, within a vehicle during an accident, can be twenty to thirty times its static weight. Therefore greatly increasing the potential of occupant injuries. MSA 4X4’s Storage Drawer Systems, and the attachments that come with them (cargo barrier mount points and child restraint points), have been crash-tested and are fully ADR compliant. Tested to ADR3/02, ADR34/01 and ADR42 and passed all the requirements prescribed by the ADRs and AS/NZS, without any structural weaknesses or degradation of the system.

Specifications

PARTS INCLUDED:

Left Drawer Module
Left Fit Kit (includes base frame)
Left Wing Kit
Drawer Bolt Template - Front
Drawer Bolt Template - Rear
Single Width Trim

DRAWER ACCESSORIES:

40001 - Drawer Stacking Kit
EDDIV-A - Drawer Divider
EPP-Left - Left Power Panel
40025 - Left Pre-Cut Panel
40018 - Battery Box Large
40019 - Battery Box Slimline
20013 - Explorer Storage Bag Bundle
20012 - Explorer Storage Bag Large
20011 - Explorer Storage Bag Medium
20010 - Explorer Storage Bag Small
45042 - Deluxe Coffee Kit Black
45043 - Deluxe Coffee Kit Cream

EXTERNAL DIMENSIONS +10mm for rear anchor bolts

Overall drawer length = 1045mm (including handle lock)
Overall drawer height = 275mm
Overall single drawer width = 510mm (no wings)

INTERNAL DIMENSIONS

Usable drawer height = 215mm (upto under side of the top deck)
Drawer height = 211mm
Internal drawer length = 930mm
Internal drawer width = 433mm

Please review Shipping policy prior to ordering drawers

Shipping Policy

PPD Performance offers great freight rates Australia wide on all your 4x4 parts and accessories using a number of high-quality providers delivering you great value, high quality accessories to you regardless of your location.

Please note, these drawer items are palletised due to their size and weight. These items will ship to your nearest depo for collection, or a commercial address with forklift. PPD Performance can quote delivery to your door if required. Call us on 1300 773 494 24 hours of your order being placed

Please note, orders where a click and collect delivery option is requested, will incur a freight charge of $200 to bring the drawers to WA to cover costs associated with pallet freight from MSA to PPD Performance. This will be invoiced after checkout

LANDCRUISER

Toyota Landcruiser (2021-2025) 300 Series MSA Left Storage Drawer System

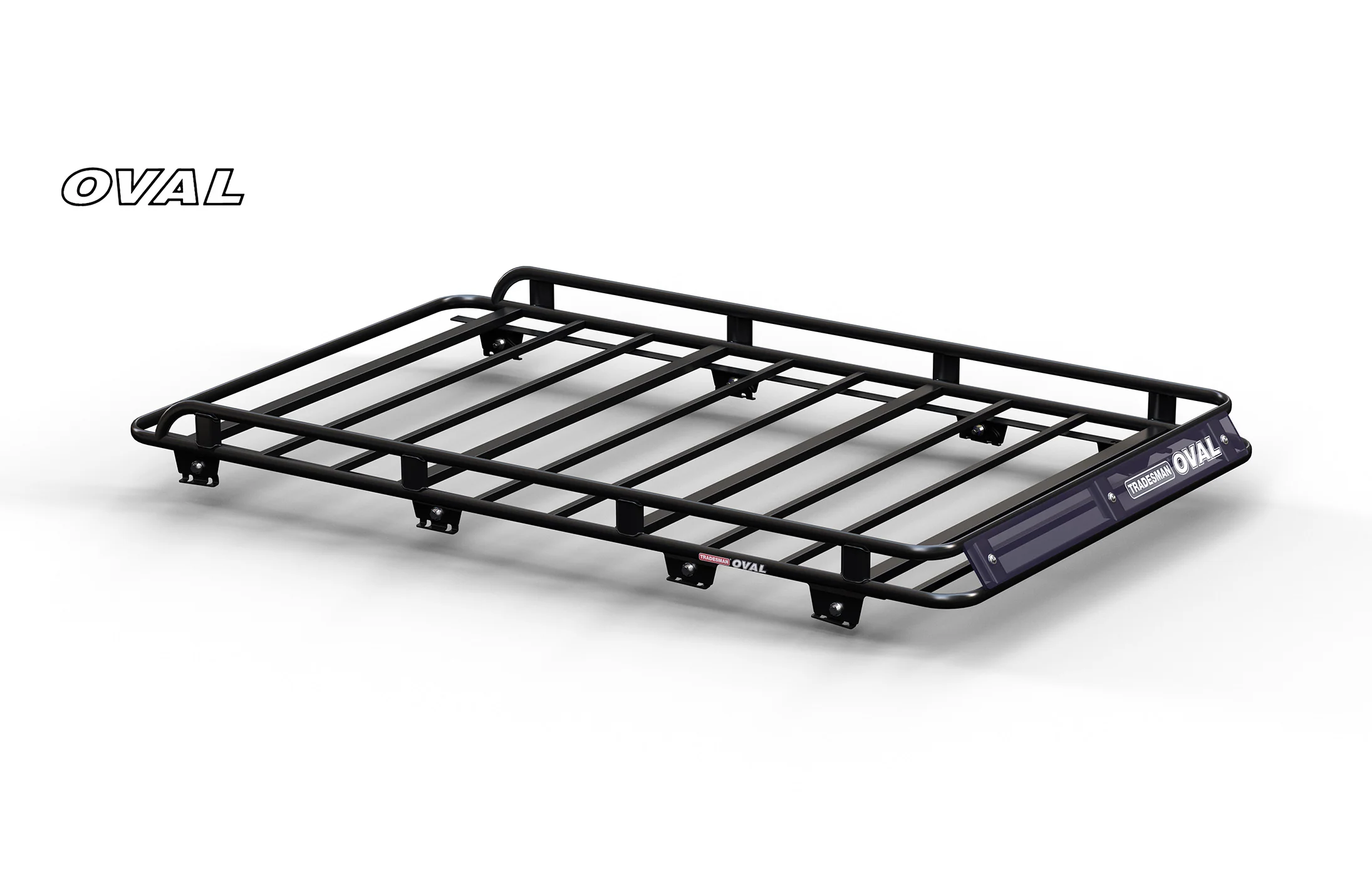

Toyota Landcruiser 73 MWB (1985 Wedgetail 1992) Oval Steel Platform

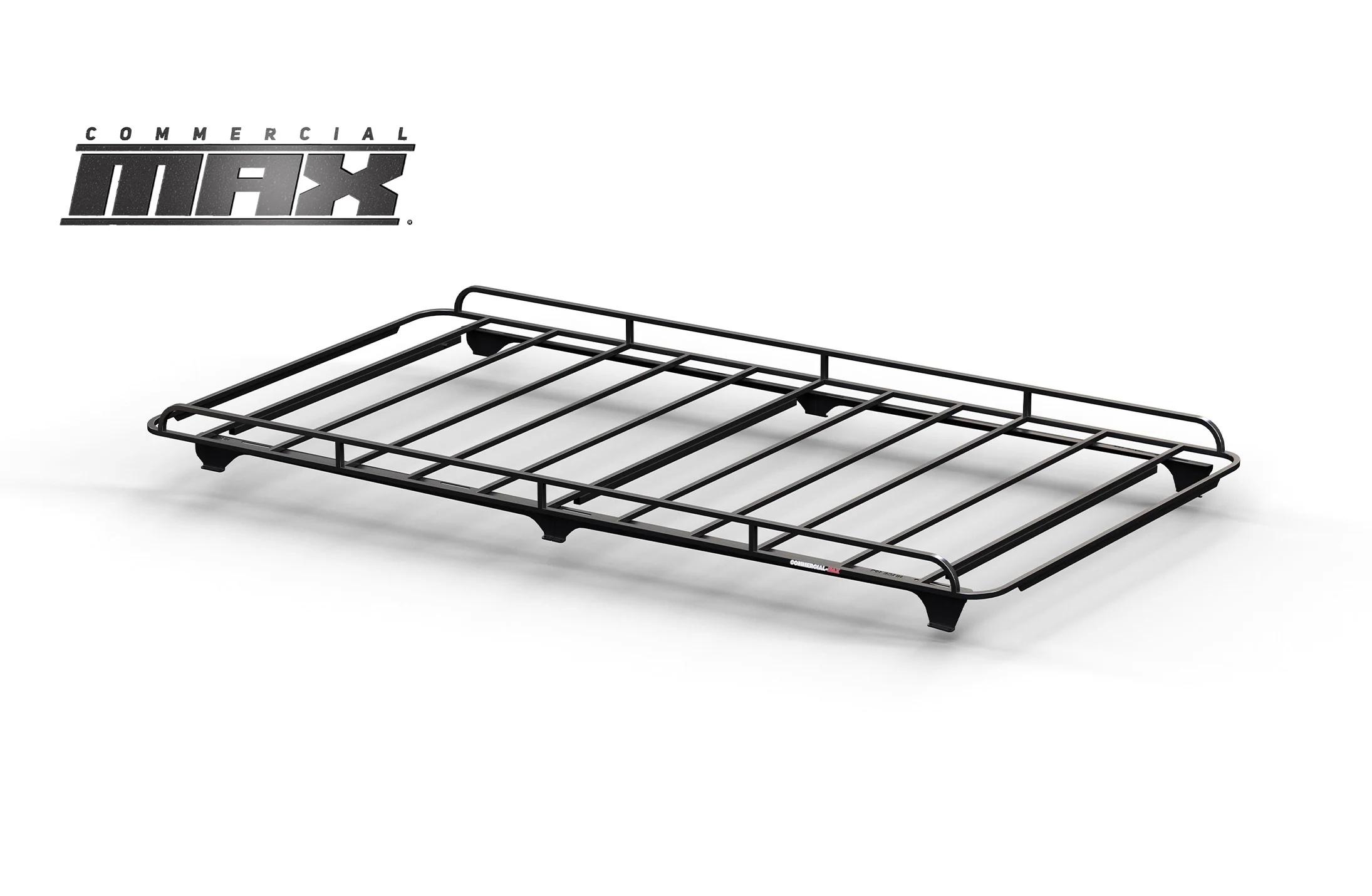

Toyota Landcruiser 70 SWB (1985 Wedgetail 1992) Commercial Max Platform
