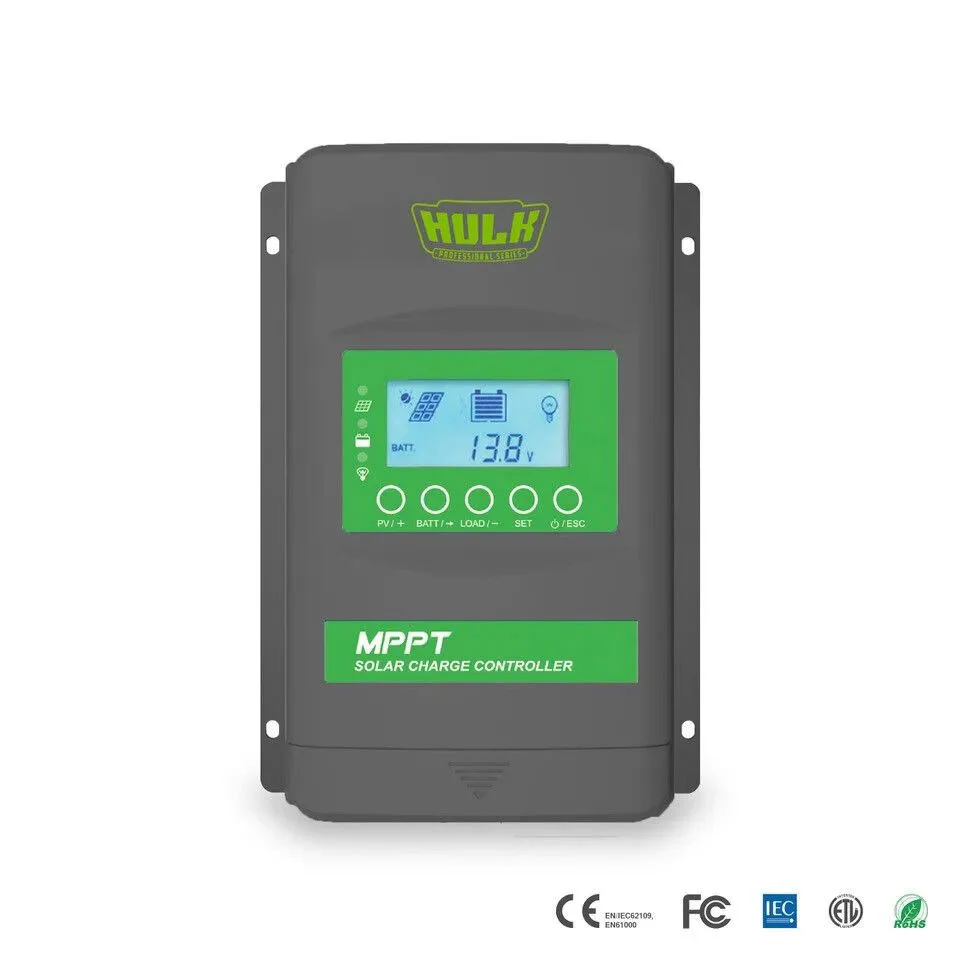

20A MPPT Solar Charge Controller
Description
The Professional Series Solar Charge Controllers provide efficient solar power management and reliable performance for all types of charging needs.
The Professional Series Solar Charge Controller range offers both PWM and MPPT controllers. The PWM controllers are available in 30 Amp and 60 Amp configurations and feature a built-in LCD display, multiple load control modes, and high-quality components for enhanced durability. They also have extensive electronic protection and support various battery types.
The MPPT controllers utilise an advanced algorithm for maximum power point tracking and are available in 20 Amp and 40 Amp configurations. They have increased energy utilisation compared to PWM charging and offer self-adaptive three-stage charging and comprehensive electronic protection. The MPPT controllers are suitable for various applications and offer programmable temperature compensation and real-time energy statistics.
Overview
The Professional Series Solar Controller utilises advanced MPPT control algorithm to maximise the energy from your solar array under any conditions. Compared to the PWM charging method, it can increase the ratio of energy utilisation by 20% - 30%. In high-temperature environments, the controller limits the charging power and current, and reduces charging power functions to ensure stability in high-temperature environments. CE certified with IP33 ingress protection and isolated RS485 design, it offers improved reliability and meets diverse application requirements. Equipped with a self-adaptive three-stage charging mode, this controller prolongs battery lifespan and improves system performance. Comprehensive electronic protection safeguards against overcharge, over-discharge, PV & battery reverse polarity, and more, ensuring a reliable and durable solar system.
Features
- 100% charging and discharging in the working temperature range
- High-quality components from ST or IR for extended service life
- Advanced Ultra-Fast Tracking MPPT technology ensures up to 99.5% tracking efficiency
- Maximum DC/DC transfer efficiency up to 98.5%; full load efficiency up to 97.2%
- Accurate recognition and tracking of multi-peaks maximum power point
- Wide MPP operating voltage range
- Supports lead-acid and lithium batteries with adjustable voltage parameters
- Programmable temperature compensation
- Limit charging power and current overrated value
- Real-time energy statistics
- Overheating power reduction function
- Multiple load work modes
- Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
- Supports monitoring and parameter setting via app or PC software
.PNG)
Part Number: HU6714 (20A) Part Number: HU6715 (40A)
Technical Specifications
| HU6714 | HU6715 | |
|---|---|---|
| Nominal System Voltage | 12/24VDC Auto | |
| Rated Charge Current | 20A | 40A |
| Rated Discharge Current | ||
| Battery Voltage Range | 8 ~ 32V | |
| Max. PV Open Circuit Voltage | 100V②92V③ | |
| MPP Voltage Range | (Battery Voltage +2V) ~ 72V | |
| Rated Charge Power | 260W / 12V 520W / 24V |
520W / 12V 1040W / 24V |
| Max. Conversion Efficiency | 98.3% | 98.6% |
| Full Load Efficiency | 96.4% | 96.5% |
| Self-Consumption | ≤30mA (12V) ≤16mA (24V) |
|
| Discharge Circuit Voltage Drop | ≤0.23V | |
| Temperature Compensate Coefficient | -3mV / °C / 2V (Default) | |
| Grounding | Common Negative | |
| RS485 Interface | 5VDC / 200mA (RJ45) | |
| LCD Backlight Time | Default: 60S, Range: 0~999S (0S: the backlight is ON all the time) | |
