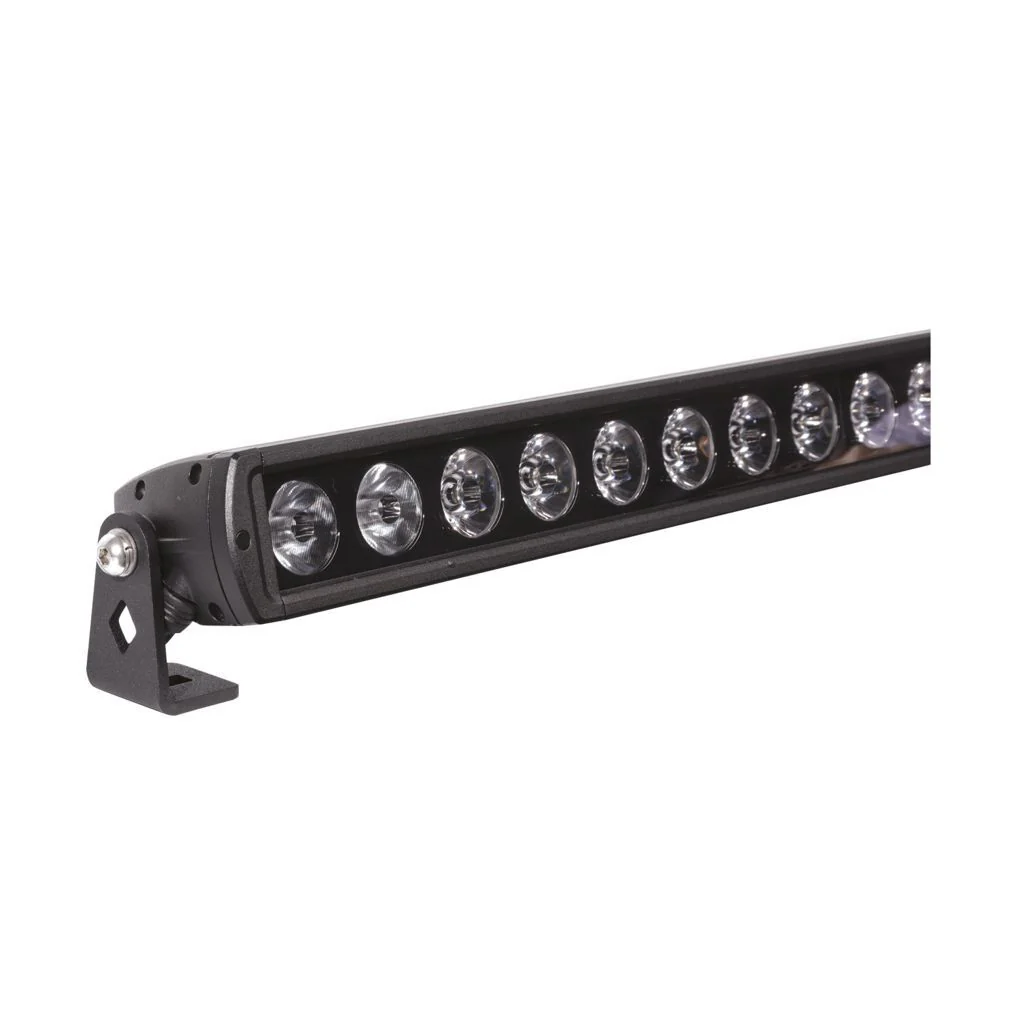

39" LED LIGHTBAR SPOT BEAM 990mm
Description
Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 240 Watt. This high-performance lightbar features Integrated Electronic Thermal Management (ETM) for optimal heat dissipation. Constructed from Black Powder Coated Extruded 6063 Aluminium, it includes an integrated Heat-Sink and Pressure Equalising Vent for durability and efficiency.
Equipped with Dual Mounting Systems, the lightbar allows for flexible installation with Bottom Mount Brackets and Side Mount Brackets. The Cross Slider Bracket Assembly enables the Bottom Brackets to be positioned anywhere along the length of the bar, providing versatility in mounting options.
With a 500mm Lead and 2 Pin Deutsch Plug, this lightbar is designed for easy connectivity. It features Over and Under Voltage Protection, as well as Reverse Polarity Protection, ensuring reliable operation in various conditions.
Featuring 24 x 10 Watt High Intensity Osram LEDs, this lightbar delivers exceptional brightness with a total output of 24,840 Raw Lumens, achieving 1 Lux at 704m and a color temperature of 6,000K. It is UV, Water, and Shock resistant, boasting a lifespan of 50,000 hours.
Compliance with ECE R112, R10, and CE standards, along with an IP68 and IP69K rating, ensures that this lightbar is built to withstand the toughest environments. It operates effectively in temperatures ranging from -40°C to +60°C and comes with a 5 Year Warranty for peace of mind.
Spare Parts Available:
- IBB50MM Round Bullbar Mounting Bracket 50mm
- IBB64MM Round Bullbar Mounting Bracket 64mm
- IBB76MM Round Bullbar Mounting Bracket 76mm
- Spot (Pencil) Beam Pattern 15 Degrees
- IAS40MM 40mm Spacer Mounting Bracket
- IBB01 Back Mounting Bracket
- IBB02 Spare Bottom Mounting Bracket
Current Draw: 16.2amp @ 12 Volt and 8.1amp @ 24 Volt. The Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens ensures light transmittance greater than 95%.
