Description

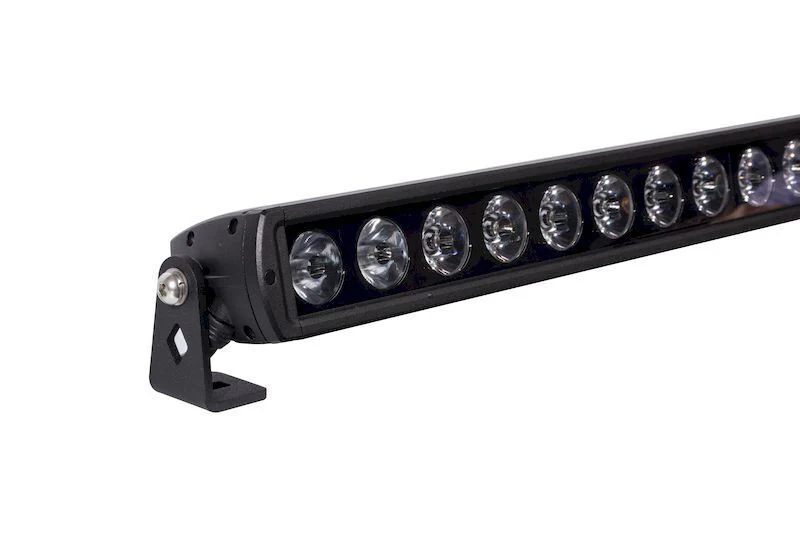

Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 320 Watt
Integrated Electronic Thermal Management (ETM)
Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
32 x 10 Watt High Intensity Osram LED's
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R112, R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
Spare Parts:
IBB50MM Round Bullbar Mounting Bracket 50mm
IBB64MM Round Bullbar Mounting Bracket 64mm
IBB76MM Round Bullbar Mounting Bracket 76mm
Spot (Pencil) Beam Pattern 15 Degrees
IAS40MM 40mm Spacer Mounting Bracket
IBB01 Back Mounting Bracket
IBB02 Spare Bottom Mounting Bracket
33,120 Raw Lumens, 1 Lux @ 834m and 6,000K
Current Draw: 22amp @ 12 Volt and 10.6amp @ 24 Volt
Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
Light Transmittance >95%

Specifications

Beam Type: Spot
Depth (mm): 70
Height (mm): 56
Rows: Single
Mount: Other
No. of LED: Other
Series: Other
Type: LED
Voltage: Multivolt
Watts: Other
Width (mm): 1300

SKU: ILB1300S
Barcode #: 9323379444604
Brand: Ignite
