52" LASER LED LIGHTBAR COMBO BEAM 1,326mm
Description
Ignite 50" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 372 Watt
Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
Combined Laser and LED Illumination Technology
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant to 15G
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
Weight: _ _ _g
68 x 4 Watt High Intensity LP LED's and 5 x 20 Watt High Intensity Osram Laser LED's
28,000 Raw and 23,800 Effective Lumens and 6,000K
1 Lux @ 1,298m and 1,683,000cd Peak Beam Intensity
Current Draw: 23.5amp @ 12 Volt and 10.1amp @ 24 Volt
Shop all lightbars
Specifications
Type: LED
Beam Type: Combined Flood/Spot
Mount: Dual Bottom & Side Mounts
Voltage: Multivolt (9 - 36V)
Power: 372W
No. of LED's: 68 x 4W High Intensity LP LEDs and 5 x 20W High Intensity Osram Laser LEDs
Effective Lumens: 23,800
Raw Lumens: 28,000
Colour Temp: 6,000K
Current Draw: 23.5A @ 12V, 10.1A @ 24V

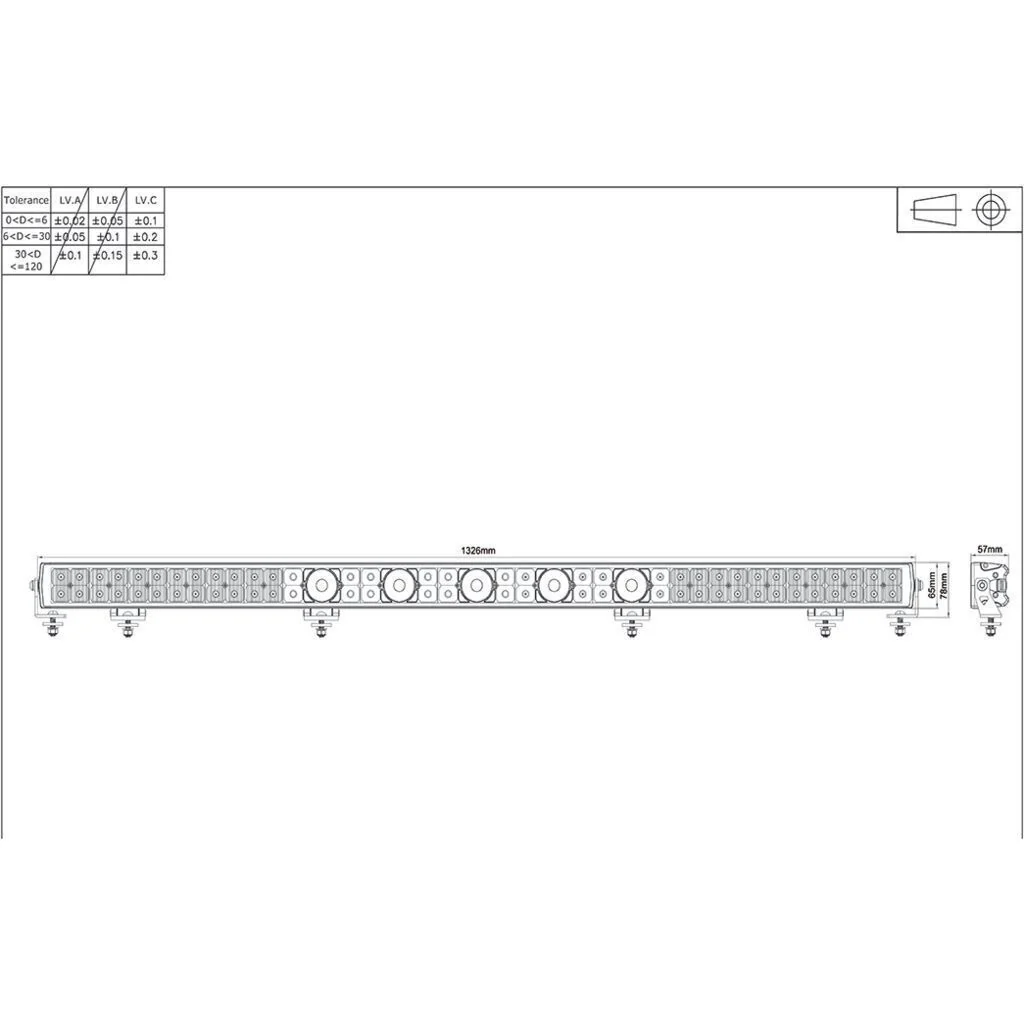

Height: 65mm
Width: 1326mm
Depth: 57mm
SKU: ILLB6804
Barcode #: 9323327947065
Brand: Ignite
Shipping and Availability
Please note PPD Performance has warehouses all around Australia, so whilst the item may be in stock this does not mean it is available at your location on the day of order. Please contact us if you are in a rush, alternatively Hulk items are generally 1-5 business days for pickup and availability.
Shipping orders usually dispatch within 1-2 business days.
