Ford F250 (2001-2006) 4WD Leaf/Leaf 2001-2006 Tough Dog Tough Dog XHD Return To Centre Damper
TD-SS5250-XHD

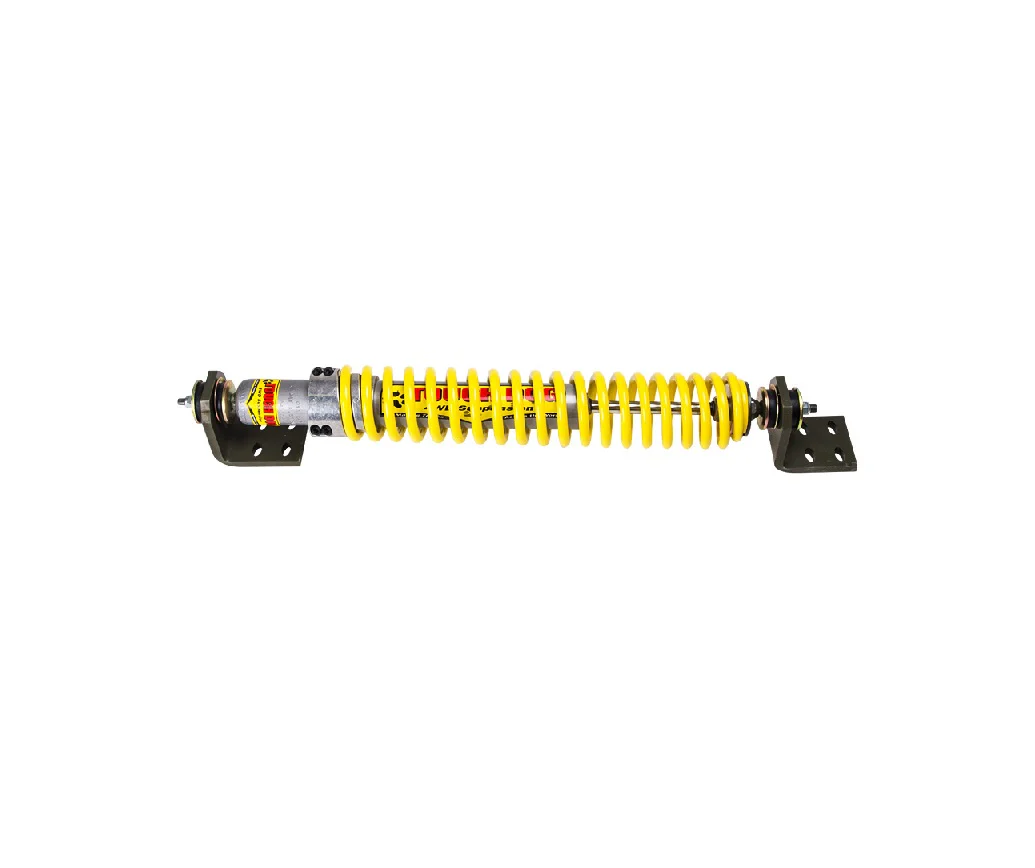

This damper is engineered for extreme applications, particularly for vehicles equipped with oversized tires and significant suspension lifts. It utilizes an advanced return-to-centre damper design, ensuring optimal steering alignment and responsiveness, even under demanding conditions.

When a vehicle is modified with a suspension lift exceeding 100mm, the geometry of the front suspension arms and the required travel length of the damper are altered. This necessitates a robust, longer damper to accommodate the increased demands. Our XHD dampers are supplied with all necessary mounting brackets and detailed instructions for the correct configuration of the coil and collar arrangement. Some modifications may be necessary to achieve a precise fit.

These dampers are specifically suitable for vehicles with a suspension lift of 4" / 100mm or more, including popular models such as the 80/100 series LandCruisers, Nissan Patrol GQ/GU, and Ford F250. Experience exceptional road handling characteristics and enhanced stability.

Key benefits include the return-to-centre principle, which is particularly effective when oversized tires are fitted, effectively eliminating shimmy and assisting in blowouts. This results in reduced driver fatigue during long-distance driving, enhancing overall driving comfort and control.

Please note that images are for representation purposes only and may not correspond to the specific part number you are viewing.

SHOCK ABSORBER SPECS

• 45mm internal bore
• 70mm external casing
• 22mm chrome plated rod
• High temperature, all weather oil
• Foam cell technology
• 9 Stage external adjustment
• Additional welding on all studs and eyerings

ADJUST TO YOUR SURROUNDS

• The 9 stages of adjustment mean you can control the firmness of your shocks easily, and adapt to the conditions as required.
• Choose a firmer ride for your highway travels, and then dial them down when its time to get down to business.

EXTREME SHOCK FOR EXTREME CONDITIONS

• Tough Dogs adjustable shocks are built tough for the Aussie outback.
• As well as the Foam Cell insert to combat shock fade, the 45mm adjustable also incorporate an ABS plastic dust shield as well as an external dust wiper seal to protect the shocks internals from grit which can damage the oil seals around the chrome rod.
• When fully extended, the shock is at its most vulnerable to damage from side load.
• The internal bump stop and piston rod guide ensure the shock is supported at the extremes of its travel.
• Our big bore shocks also have a DU bushing fitted internally to protect the seals from damage caused by side load at full extension.

This damper is designed for those extreme use applications like vehicles with oversized tyres and large suspension lifts. Taking the principle of the return to centre damper to the extreme, this damper certainly packs a punch when it comes to straightening out your steering. When a vehicle is fitted with a suspension lift greater than 100mm, the geometry of the front arms, and the length of travel required from the damper will change, requiring a larger, longer heavier duty damper.
XHD dampers come will with all the brackets required to mount the damper as well as instructions on correct configuration of the coil and collar arrangement. Some modification may be required to ensure correct fit. Suitable for vehicles with a suspension lift of 4” / 100mm or more. Available for 80/100 series LandCruisers, Nissan Patrol GQ/GU & Ford F250 models.

Superb road handling characteristics
Return-to-centre principle especially when oversize tyres are fitted
Eliminate shimmy and assist in blowouts
Reduced driver fatigue on long distance driving
