Description

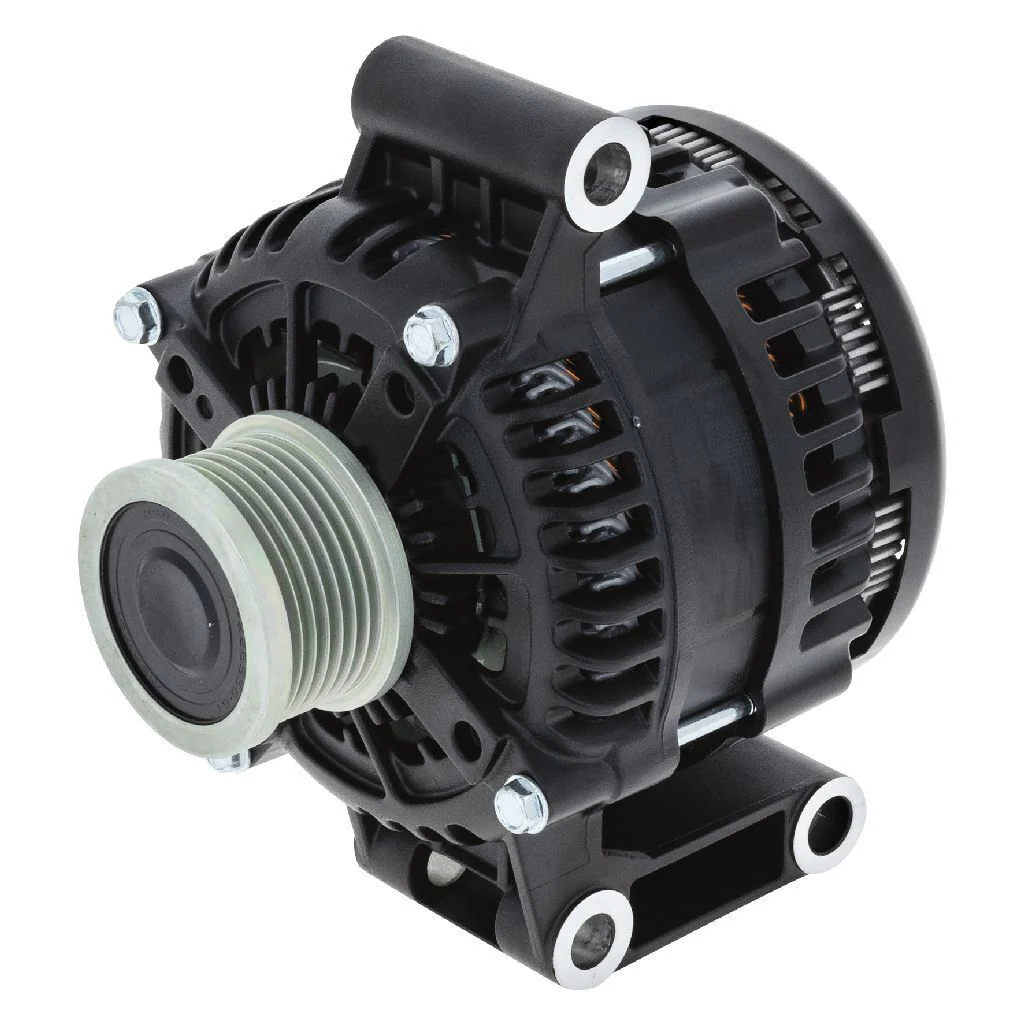

High Performance Ford Ranger P5AT 12V 240A Alternator

Vehicle Compatibility:

Ford Ranger P5AT

Important Notes:

Match by OE Numbers ONLY.

Will not suit all models.

This alternator is fitted with rectifier and clutch pulley.

Please note a battery positive wiring upgrade is needed for this alternator.

Useful Information Sheet

We recommend this product be installed by a licensed Auto Electrician.

Specifications

Voltage: 12V

Amperage: 240A Cold, 217A Hot

Mount Leg ID: 74mm

C-C Mounts: 174mm

Hole ID Top: 13mm

Hole ID Bottom: 13mm

Shaft Size: N/A

Pulley Type: 7PV, Clutch

Pulley Grooves: 7PV

Pulley Diameter: 58mm

Regulator Type: N/A

Connections Plug No: EP82-2

Terminals: B+, COM / LIN, D

Excitation: N/A

Ground: N/A

Additional Information

SKU: BKS-240FR

Barcode #: 9356659446906

Brand: Black Series
