Description

High Performance GM Holden LS1 Universal 12V 215A Alternator

Vehicle Compatibility:

GM Holden LS1 and Universal Type Applications.

Important Notes:

*** Please note a battery positive wiring upgrade is needed for this alternator. ***

Wiring modification will need to be made on standard type vehicles.

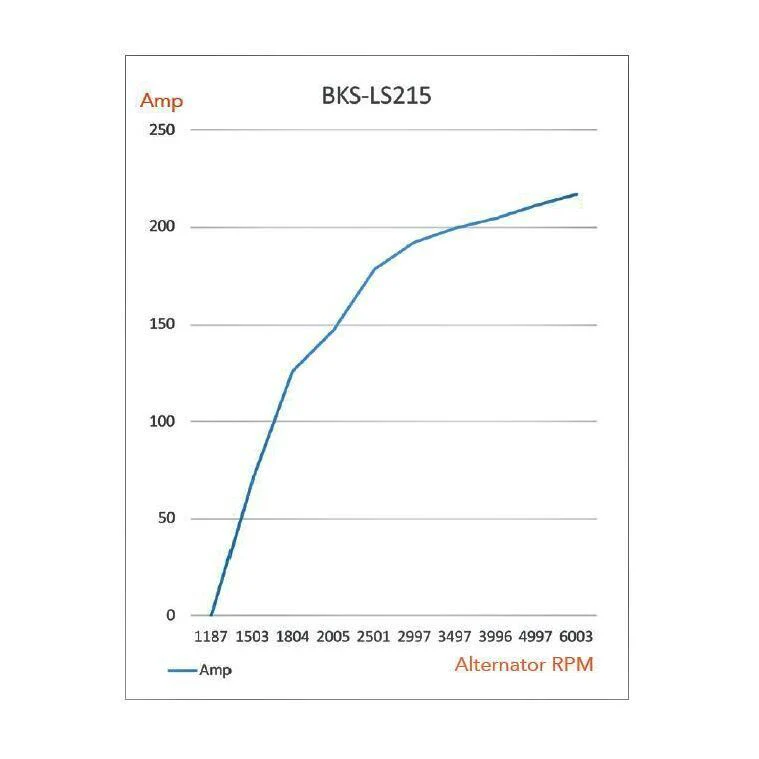

Hair pin stator high charge rate at low RPM.

We recommend this product be installed by a licensed Auto Electrician.

Specifications

Voltage: 12V

Amperage: 215A Hot (96°) 231A Cold (40°)

Mount Leg ID: 56mm

C-C Mounts: 139mm

Hole ID Top: 10mm

Hole ID Bottom: 10mm

Shaft Size: 17mm

Pulley Type: 6PV, Fixed

Pulley Grooves: 6

Pulley Diameter: 61mm

Regulator Type: Internal

Connections Plug No: Ep39

Terminals: B+ L, S

Excitation: External

Ground: Negative

Additional Information

SKU: BKS-LS215

Barcode #: 9356659124910

Brand: Black Series
