Description

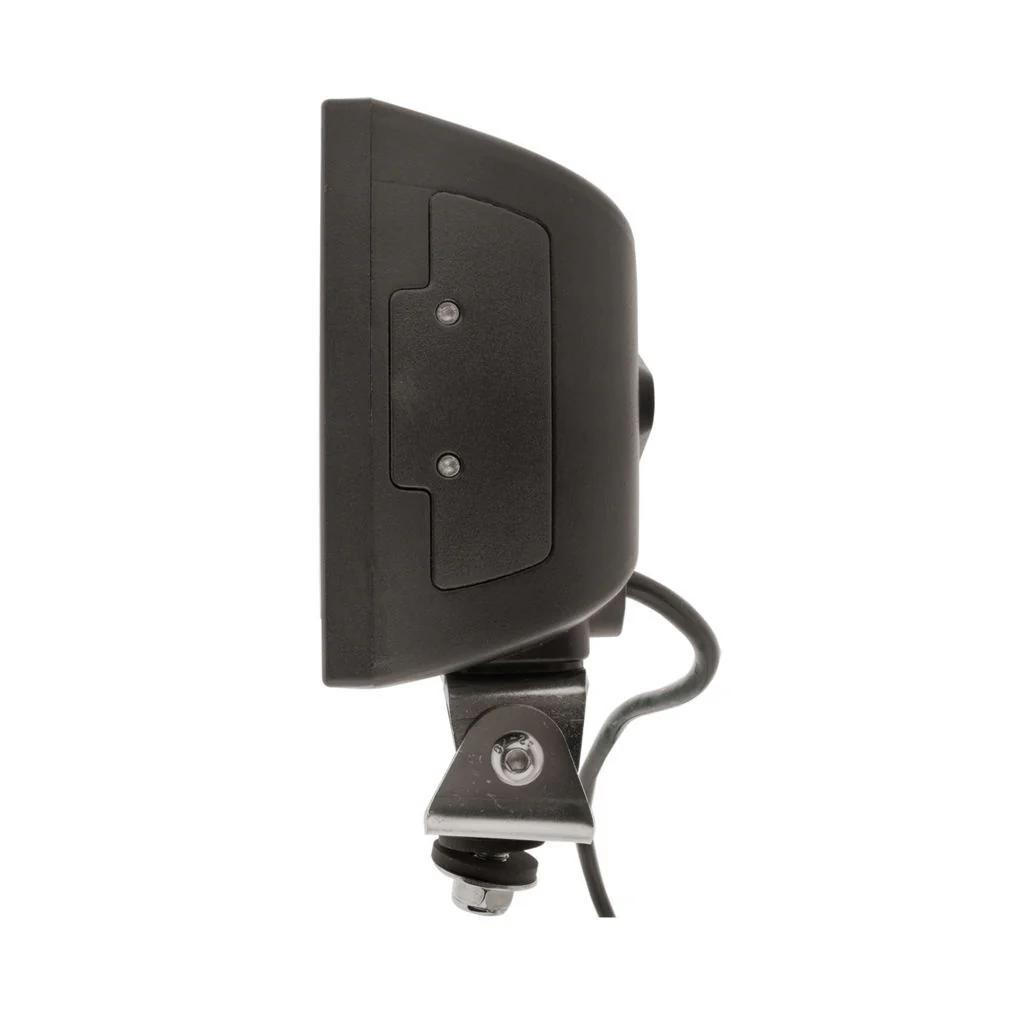

Ignite Square LED HeadLamp 10 - 30 Volt 60 Watt
High Beam: 3,600 Raw Lumens and 3,060 Effective Lumens at 5,700K
Position Lamp: 160 Raw Lumens and 130 Effective Lumens at 5,700K
Low Beam: 1 Lux @ 163m with 26,875cd Peak Beam Intensity
High Beam: 1 Lux @ 280m with 78,125cd Peak Beam Intensity
Current Draw: 4.9amp @ 12 Volt and 2.51amp @ 24 Volt
Polycarbonate Free Form Optical Reflector Technology for Low and High Beam Lamps
Polycarbonate Lens assembly
150mm x 150mm - Black Fascia
Integrated Electronic Thermal Management (ETM)
Black Powder Coated Extruded 6063 Aluminium Housing with Integrated Heat-Sink and Pressure Equalising Vent
Stainless Steel Single Bolt Mount Bracket and Hardware
400mm Lead with 4 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock Resistant
50,000 Hours LED Lifespan
ECE R6, R7, R10, DOT and CE Approved
IP68 and IP69K Rating
High / Low Beam and Position Lamp
Environment Temperature: -40°C ~ +60°C
2 Year Warranty
Weight: 1.25kg

Spare Parts:
IWH030 Adaptor Harness for Negative Switched Vehicles
2 x 10 Watt High Intensity ETI LED's for Low Beam
4 x 10 Watt High Intensity ETI LED's for High Beam
2 x 1 Watt LumiLEDs LED's for Position Lamp
Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens at 5,700K
