Description

Ignite LED Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Faceted Reflectors with Red and Amber Polycarbonate Lens and inbuilt Retro Reflectors

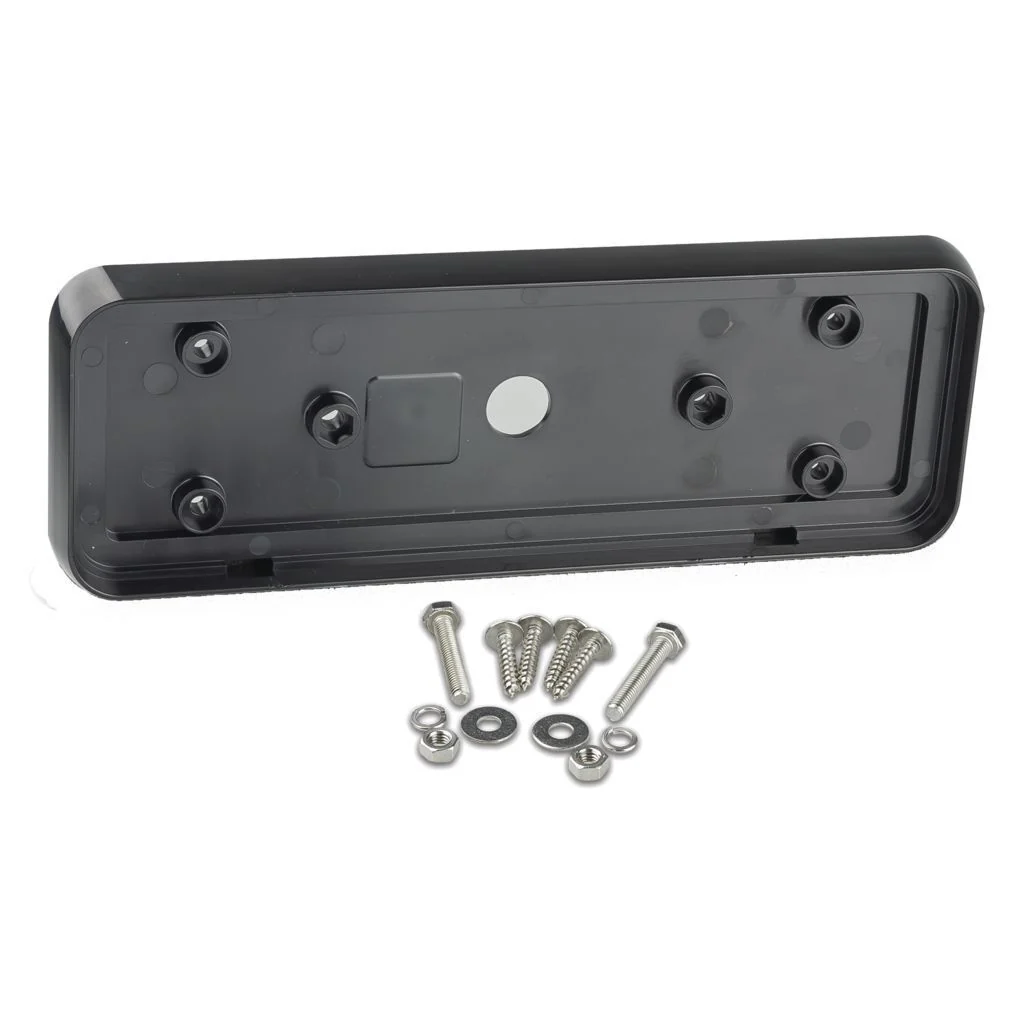

Black ABS Plastic Clip in Housing with mounting screws or bolts included
Surface Mount, low mounting depth for easy installation
Pre-wired 300mm long 5 Wire Sheathed Lead
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Sealed against Dust and Moisture
Red, Amber and White Illumination
ADR 49/00 Rear Stop Lamp specifications approved
ADR 6/00 2A Rear Indicator Lamp specifications approved
ECE R23 and ADR 1/00 Reverse Lamp specifications approved
ADR 47/00 Reflector specifications approved
Refer to ADR 13/00 for mounting instructions
IP67 Rating
Blister Qty: 1
2 Year Warranty
16 x High Intensity White LED's in each Stop / Tail and Indicator and Reverse Lamp Modules
Current Draw: 0.24amp at 12 Volt, 0.12amp at 24 Volt for Stop function
Current Draw: 0.03amp at 12 Volt, 0.02amp at 24 Volt for Tail function
Current Draw: 0.27amp at 12 Volt, 0.14amp at 24 Volt for Indicator function
Current Draw: 0.17amp at 12 Volt, 0.10amp at 24 Volt for Reverse function

Specifications

Depth (mm): 25

Height (mm): 100

Mount: Surface

Shape: Rectangular

Type: LED

Voltage: 12/24V

Width (mm): 283

SKU: ISL461RAW

Barcode #: 9323327946396

Brand: Ignite
