FINALLY A WORTHY 7" LED HEADLAMP You've either heard about or tried the other disaster 7" LED kits on the market. Our Carbon LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our CARBON is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a full halo DRL, the CARBON is your all in one upgrade solution for your motorbike or 4x4 vehicle that runs 7" headlight (list of known compatible models in description).
	PERFORMANCE THAT SURPASSES THE VERY BEST The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo DRL can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.
ADR COMPLIANT The CARBON falls inside the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retro fitting LED lights, from the get go you're all set.

DETAILS

Our CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycles light output. Complete with High and Low beam as well as a half LED halo ring DRL, the CARBON 7" is the perfect replacement for your existing headlight.

KEY PERFORMANCE METRICS

• ADR Approved E-Mark CE
• Proper Right Hand Drive Beam Geometry
• H4 + H13 Adaptor
• High Beam 1 Lux @ 210m
• Low Beam 1 Lux @ 118m

PERFORMANCE BUILD QUALITY

• Anodised Polyester Powder-coat
• Lexan Poly-carbonate (PC) Lens refactor
• Die cast aluminium alloy (ADC12) Heat-Sink
• IP67 | Ingress Protection
• Shock Proof, Waterproof and UV Shielded
• Protected against Reverse Polarity and Voltage / Current surges
• Warranty | 2 Years

COMPATIBLE MODELS:

• 1955-1983 Jeep CJ-5
• 1976-1986 Jeep CJ-7
• 1981-1985 Jeep CJ-8
• 1997-2006 Jeep Wrangler (TJ)
• 2007-2017 Jeep Wrangler 2-Door (JK)
• 2007-2017 Jeep Wrangler Unlimited 4-Door (JK)
• Land Rover Defender
• 1982 - 1991 Mitsubishi Pajero (L040)
• 70 Series Toyota LandCruiser with round headlamp (Needs additional H4 canbus to resolve negative switching)
• 60 Series Toyota LandCruiser with round headlamp (Needs additional H4 canbus to resolve negative switching
• Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
• GQ Patrol
• Harley Davidson Motorcycles
• Mercedes Benz G Wagon
• Kenworth Trucks with 7 inch round headlight

SPECIFICATIONS

LED	High Beam: 2x 10w XML-2 LED Low Beam: 2x 15w LED DRL: 30x 1.5w Osram
RAW LUMENS	High Beam: 1800Lm Low Beam: 1250Lm DRL: 150Lm
AMP DRAW	High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v DRL: 0.2a @ 13.6v
LIFESPAN	50,000 Hours
INGRESS PROTECTION	IP67
OPERATING TEMPERATURE	-30°C~+60°C
LENS MATERIAL	LEXAN Polycarbonate
COLOUR TEMP	5700K
VOLTAGE COMPATIBILITY	12v & 24v
PEAK BEAM DISTANCE @ 1 LUX	High Beam: 210m Low Beam: 118m DRL: 8m
WEIGHT (EACH)	1.140kg each
DROP IN REPLACEMENT FOR	#6014, 6015, 6016, H6024 and Par 56 headlamp designs

WHAT"S IN THE BOX

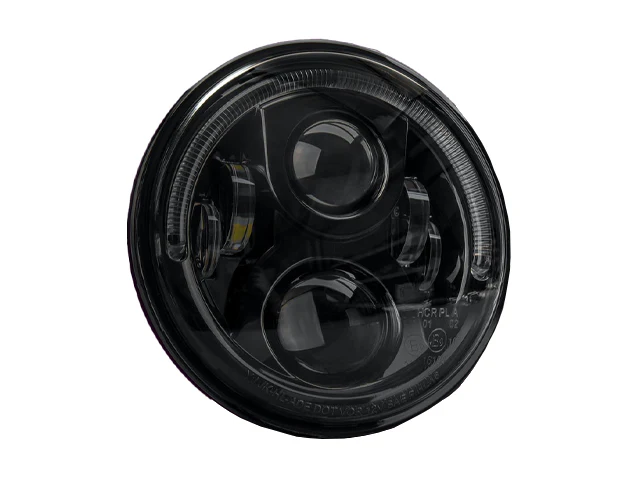

• 1 x 7 inch STEDI CARBON CHARCOAL LED Headlight
