STEDI Micro V2 26 Inch 48 LED Flood Light (Each) - LED3520-26-72W

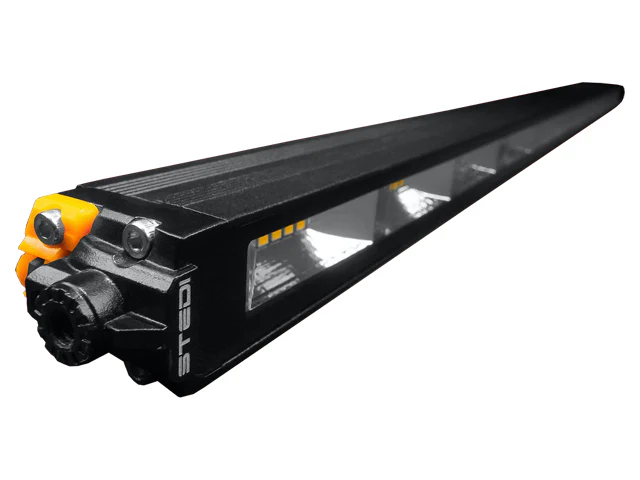

Product image 1

STEDI Micro V2 26 Inch 48 LED Flood Light (Each) - LED3520-26-72W

STEDI Micro V2 26 Inch 48 LED Flood Light (Each) - LED3520-26-72W

NOTE:This product is a universal fitment and may not suit all applications, please contact us if you are unsure if it is suitable.

STEDI ST3K 31.5 inch 30 LED Slim LED Light Bar (Each)
STEDI ST3K 31.5 inch 30 LED Slim LED Light Bar (Each)
STEDI ST3K 31.5 inch 30 LED Slim LED Light Bar (Each)
STEDI ST3K 31.5 inch 30 LED Slim LED Light Bar (Each)
STEDI ST3K 31.5 inch 30 LED Slim LED Light Bar (Each)

OVERVIEW.

Our lowest profile LED Light bar with a total height of only 26mm is perfect for those looking for a combo beam but running tight on space or looking to keep the factory look to their vehicle. Available in 3 different sizes to fit any application, our ST3520 Micro is the easy choice when looking for that bit of extra light.

PERFORMANCE.

The ST3520 is the perfect addition to an already powerful lighting setup or just looking for something to bring some light over your standard headlights. Running a combo beam so even if it's the only bar you run on your vehicle you're provided with good spot and flood beam.

APPLICATION.

These little puppies have one of the widest fields of usable application as they are quite nimble and light weight meaning they can pretty much be mounted anywhere you need without needing to be heavily supported by the structure of the car weighing in at only 0.300kgs for the 7.3 inch bar.
STEDI Micro V2 26 Inch 48 LED Flood Light (Each) - LED3520-26-72W
STEDI Micro V2 26 Inch 48 LED Flood Light (Each) - LED3520-26-72W
STEDI Micro V2 26 Inch 48 LED Flood Light (Each) - LED3520-26-72W

THE NITTY-GRITTY.

KEY FEATURES AT A GLANCE

  • IP67 Ingress Protection
  • 6 x 3 Watt CREE LED
  • Micro Profile at only 26mm
  • Flood Beam - Perfect Rear Light, Awning Light or bumper or bull bar voids.
  • Waterproof Deutsch Connectors Male and Female with wire tails

If mounting to a vertical surface, the included mounts may not provide adequate rotation to angle the light down - Our optional ST3K side bracket (SKU:BRKST3K-SDE) work magnificently.

TECH SPECS

OPERATING VOLTAGE DC 10-28V
POWER CONSUMPTION 48W
AMP DRAW 5.5a @ 12v / 2.25a @ 24v
COLOUR TEMPERATURE 5700K
LED 48 x OSRAM GW PSLR 32. PM DRUISS
EFFECTIVE LUMEN 5,100lm
BEAM ANGLE Height: 30° Width: 120°
ENVIRONMENT TEMP -40° to 60°C
IP RATING IP68
LENS Polycarbonate with Surface Hardening
FRAME/HOUSING Extruded Aluminium
DT CONNECTOR Included
MOUNTING BRACKET 304# Stainless Steel
LIFETIME 30,000hrs
SIZE (mm) 666 x 26.3 x 40.6
WEIGHT 0.8kg
CABLE LENGTH 400mm
CERTIFICATION CISPR25
STEDI ST3K 31.5 inch 30 LED Slim LED Light Bar (Each)

WHAT'S INCLUDED

  • 1 x 26 Inch Micro V2 LED Work Light (White)
  • 2 x 46mm Side Brackets
  • 2 x M8 Bolts
  • 2 x M6 Bolts
  • 2 x Nuts
  • 4 x Flat Washer
  • 4 x Spring Washer
  • Male & Female Deutsch Connectors
Shipping Policy

Stedi offer the highest quality lighting solutions

Only some of these kits are stocked at PPD Performance Myaree pick-up centre, with most brought in on order with an average lead time of 1 week.

If you need a specific eta, please contact us before ordering and we will be sure to assist you.
