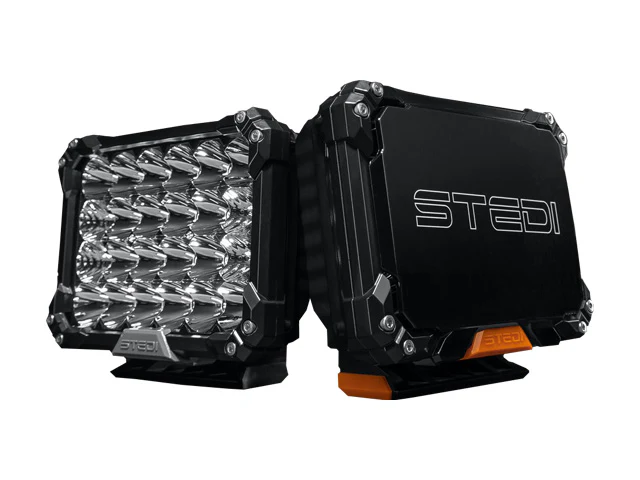

Stedi Quad Pro LED Driving Lights (Pair) - LEDQUAD-PRO

Product image 1

Stedi Quad Pro LED Driving Lights (Pair) - LEDQUAD-PRO

Stedi Quad Pro LED Driving Lights (Pair) - LEDQUAD-PRO

Universal Product Banner
Stedi Quad Pro LED Driving Lights (Pair) - LEDQUAD-PRO

COMPACT DESIGN. MEGA PERFORMANCE.

The compact-LED driving light space has been fearfully neglected, with offerings looking as underwhelming as their inability to sustain a compact performance. Enter the all-new STEDI QUAD Pro.

A LEGENDARY BLOODLINE.

The QUAD Pro is the continuation of the high-calibre class of the PRO bloodline. Sharing the legendary performance of the Type-X Pro and ST3303 Pro, the QUAD Pro utilises the same reflector and LED technology, to deliver an explosive performance.

CUSTOMISABLE LIKE NO OTHER.

Included in the kit is a pair of STEDI blackout cover, in addition to the orange and grey colour customisation caps. The iconic STEDI Smiley covers are available to purchase separately, as are blue, green, red, and yellow colour caps.

RAZOR-SHARP LUMINANCE.

Our Quads showcase a glistening 5700K colour temperature, providing the necessary luminance to cut-through any obstrusive dust and other air-born particles.

TAKE YOUR PICK.

The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.

Stedi Quad Pro LED Driving Lights (Pair) - LEDQUAD-PRO
Stedi Quad Pro LED Driving Lights (Pair) - LEDQUAD-PRO
Stedi Quad Pro LED Driving Lights (Pair) - LEDQUAD-PRO

THE NITTY-GRITTY.

QUAD Pro LED Driving Lights

The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.

KEY FEATURES

  • Includes our legendary Easy-Fit plug and play high beam wiring harness
  • IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight
  • 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles
  • Environmentally sealed Deutsch DT-2 connectors
  • RFI and EMI suppressed circuit design, means no interference with radio or communications equipment
  • High-Pressure Die-Cast Bracket
  • Spread and Spot beam reflectors built-in

TECH SPECS

LED 24 x Oslon High-Flux LED
RAW LUMENS 17,040 (Pair)
TESTED LUMENS 11,360 (Pair)
AMP DRAW 7.4A @ 13.2v (each)
POWER DRAW 97W (each)
CANDELA
693,889cd
BEAM PATTERN
4 x Spread 20 x Pencil Beam
INGRESS PROTECTION
IP68 | Submersible up to 3m
COLOUR TEMP (CCT)
5700K
VOLTAGE COMPATIBILITY 12v and 24v
LUMEN MAINTENANCE
50,000 LM-80
WEIGHT
1.4Kg (Including cover) (each)
PHOTOMETRIC DATA
10 m
6,938 Lx
50 m
277 Lx
200 m
17 Lx
300 m
7.7 Lx
400 m
4 Lx
500 m
2.7 Lx
833 m
1 Lx
Stedi Quad Pro LED Driving Lights (Pair) - LEDQUAD-PRO

WHAT'S INCLUDED

  • 2 x QUAD Pro LED Spot Lights
  • 2 x STENCIL Black Out Covers
  • 1 x Set Orange Colour Caps (fitted)
  • 1 x Set Grey Colour Caps
  • Easy Fit High Beam Wiring Harness
  • H4 and HB3 adapters to High Beam
  • Installation Manual
  • Stainless fitting hardware
