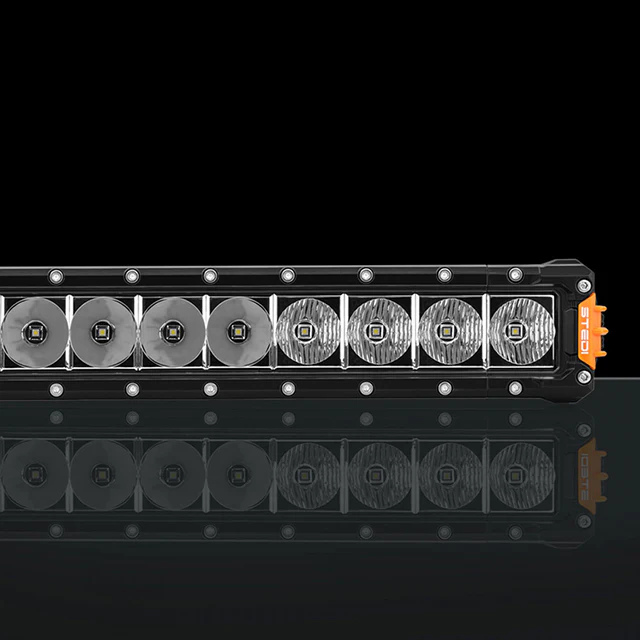

Our ST3301 Series 27.5' Inch 18 LED Light Bar was designed to offer a high volume of light in the mid-range, with excellent visibility on the road shoulders. Brought to a work light size because of its strong performing beam it is perfectly suited for any application where you find yourself short of space but in need of a powerful light. 5500K STUNNING CLARITY
OVERVIEW The all-new STEDI ST3301 18 LED light bar with a new look and improved lighting technology alongside revised reflectors increasing the performance and aesthetics remarkable.

DETAILS

KEY TECHNICAL BREAKDOWN

• Ingress Protection IP68 (Backed by a certificate of conformity),
• Coordinated Colour Temperature 5700K - Excellent colour contrast.
• Flood/spot/flood combination with 18 x LEDs
• 4 Flood + 10 Spot + 4 Flood Reflector Distribution
• Tough GE Lexan primary lens which 250 times the impact-resistant strength of glass and 30 times stronger than acrylic Poly-carbonate.
• Waterproof Deutsch DT Connector
• Adjustable Slide mounts and stainless steel side brackets included.
• Guaranteed against electromagnetic (EMC) and radio frequency (RFI) interference

SPECIFICATIONS

OPERATING VOLTAGE	10-45V DC
IP RATING	IP68
LED	18 x OSRAM™
COLOUR TEMPERATURE (CCT)	5500K
MATERIAL	Die-Cast Aluminium Housing
LENS	GE Lexan
MOUNTING BRACKET	Aluminium
BOLTS AND FITTINGS	3 Series Stainless Steel
FLOOD BEAM ANGLE	45° Degrees
SPOT BEAM ANGLE	11° Degrees
LUMEN MAINTENANCE	50,000 LM-80
WEIGHT	2.800kg
CURRENT DRAW	11.8A @ 13.6v

WHAT"S IN THE BOX

• ST3301 Pro 27.5 INCH 18 LED LIGHT BAR
• Stainless Bolt and Nut Set
• Sliding Lower Mounting Brackets + Side Brackets
• Quick-Fit High Beam Wiring Harness 12v Relay, Wiring Kit and On/Off Switch
• 2 x Orange Side Caps
• 2 x Grey Side Caps
• HB3 and H4 Piggy Back Adaptors

Shipping Policy

Stedi offer the highest quality lighting solutions

Only some of these kits are stocked at PPD Performance Myaree pick-up centre, with most brought in on order with an average lead time of 1 week.

If you need a specific eta, please contact us before ordering and we will be sure to assist you.
