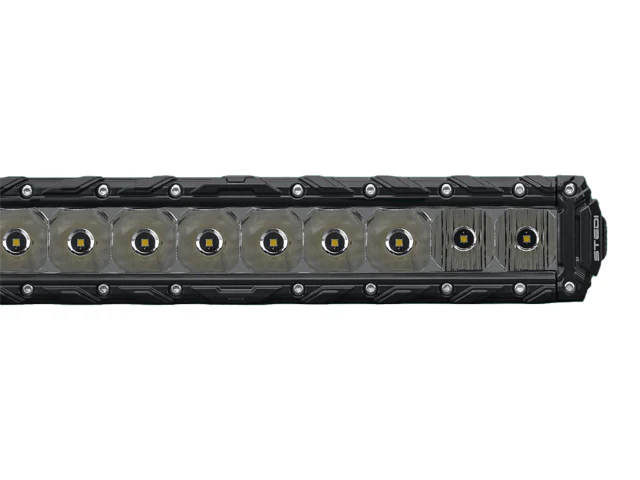

OVERVIEW Our STEDI ST3K LED Light Bar was designed to bring a large amount of light to a small amount of space. With its small profile of just 63mm total height with the side brackets attached, you will find the ST3K is able to be mounted in locations like your front bar and grill whilst maintaining the factory look of your vehicle.
	PERFORMANCE The ST3K packs quite a powerful punch running off the same Pure Drive technology + LEDs as our popular Type-X and ST4K range. The ability to mount in tight spaces are its key trait as it can be mounted on your standard vehicle and prove to be a useful source of light whilst driving out bush with cars that don't have the space to run some of our larger LED light bars.
BEAM CHARACTERISTICS Easily comparable to our STEDI Type-X and ST4K range the beam type of the ST3K follows in line. Providing a strong penetrating beam with 493m at 1 LUX and 55m out to the shoulders of the road with flood beam, the perfect all-rounder with low profile has arrived!

DETAILS

MARKET LEADING PERFORMANCE.

ST3K-20L features 20 of OSRAM"s® finest OSLON® LED, selected for unrivalled efficiency.

4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

Includes our Easy Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems

Backed by a 5 Year Replacement Warranty.

SPECIFICATIONS

LED	20 x Osram Oslon White
EFFECTIVE LUMEN	4,100Lm
PEAK INTENSITY	243,200cd
OPERATING VOLTAGE	10-30V DC
IP RATING	IP68
CURRENT DRAW	4.3A @ 13.5v
COLOUR TEMPERATURE (CCT)	5700 Kelvin
HOUSING MATERIAL	Aluminium Extrusion & Cast
LENS	GE™ Lexan
MOUNTING BRACKET	Powder Coated 3mm Stainess Steel
BOLTS AND FITTINGS	3 Series Stainless Steel
BEAM TYPE	Flood Spot Combo
LIFE SPAN	50,000 Hours
WEIGHT	1.855
OPERATING ENVIRONMENT	-40 - +50° Celsius

WHAT"S IN THE BOX

• ST3K 21.5inch LED LIGHT BAR
• Stainless Fasteners
• Stainless Steel Side Mounting Brackets
• 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
• H4 and HB3 adapters included
• Wiring Instructions
