Description

Toyota Hilux GUN Series DSL 12V 240A Alternator

Vehicle Compatibility:

Toyota Hilux GUN Series w/ 1GDFTV DSL

Toyota Hilux GUN Series w/ 2GDFTV DSL

Important Notes:

This alternator features a side entry regulator.

For a rear entry alternator, please use BKS-240TP.

*** A battery positive wiring upgrade is required for this alternator. ***

Installation Recommendation: We highly recommend that this product be installed by a licensed Auto Electrician.

Specifications

Voltage: 12V

Amperage: 240A

Mount Leg ID: 52mm

C-C Mounts: 160mm

Hole ID Top: 12mm

Hole ID Bottom: 11mm, M10

Shaft Size: 17mm

Pulley Type: 7PV, Fixed

Pulley Grooves: 7

Pulley Diameter: 65mm

Regulator Type: Internal

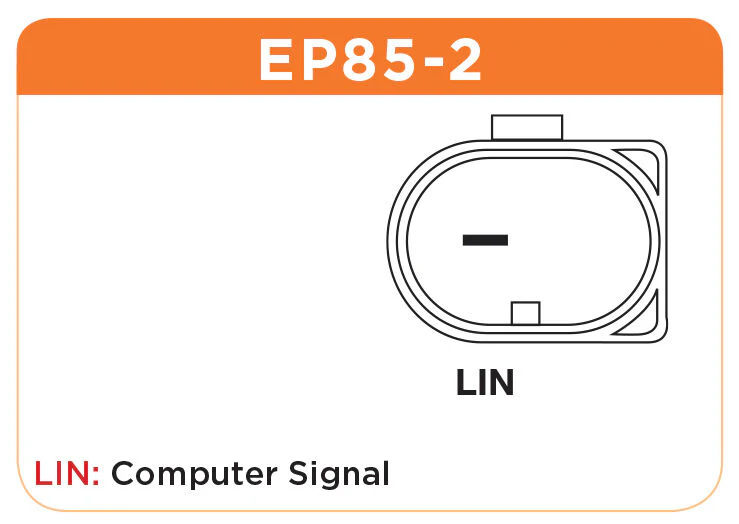

Connections Plug No: EP85-2

Terminals: B+, LIN

Excitation: External

Ground: Negative

Additional Information

SKU: BKS-240GUN

Barcode #: 9356659439434

Brand: Black Series
