Toyota Landcruiser (2007-On) 76 Series Wagon 2007-On Roadsafe RAFTLCB Blackhawk High Clearance Radius Arm Kit - Non DPF Models
Toyota Landcruiser (2007-On) 76 Series Wagon 2007-On Roadsafe RAFTLCB Blackhawk High Clearance Radius Arm Kit - Non DPF Models
RAFTLCB

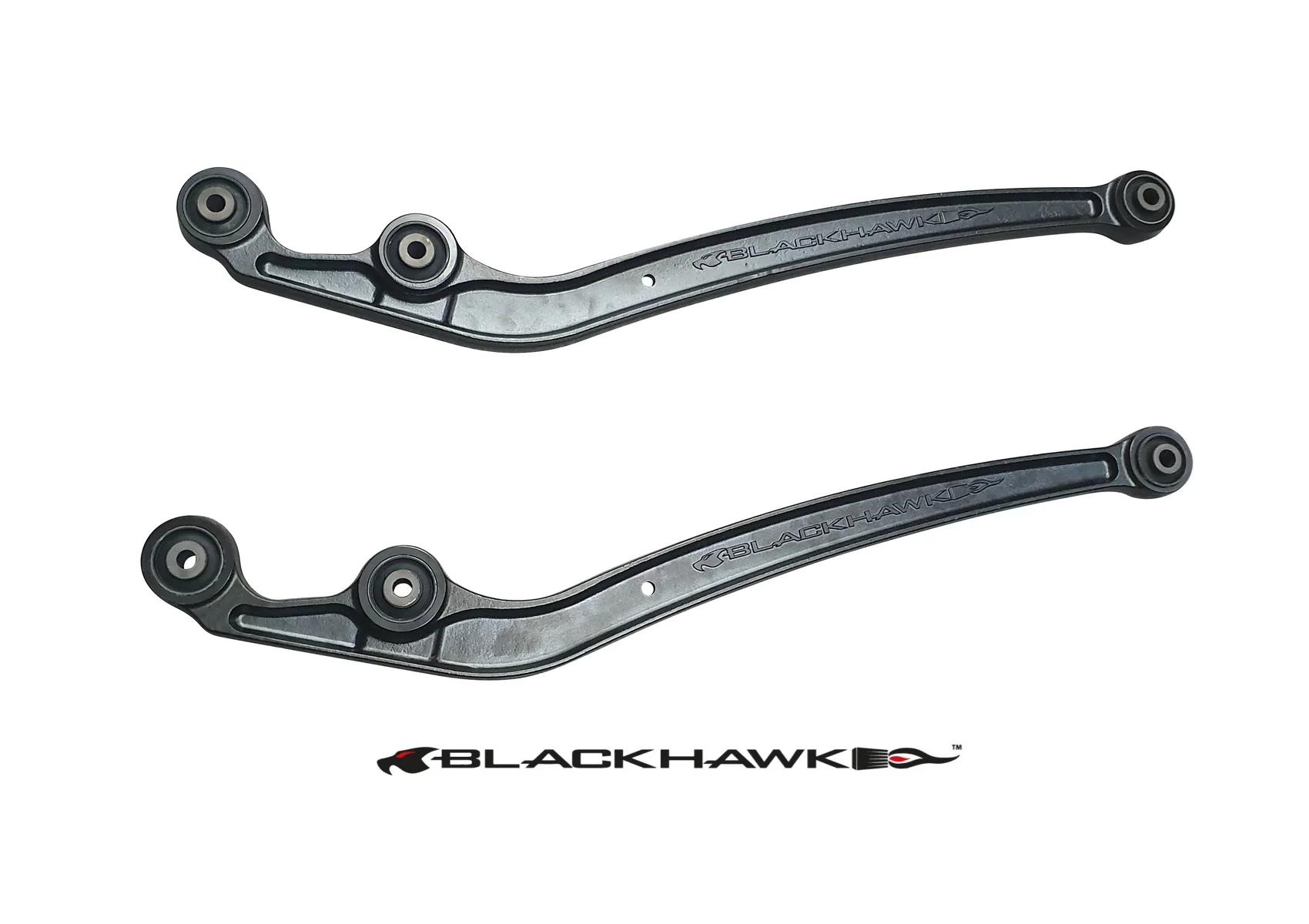

Engineered specifically for Australian terrain, the Blackhawk 4×4 Radius Arms enhance handling characteristics on lifted vehicles while providing superior clearance compared to competing products. These radius arms are meticulously crafted to utilize a Hybrid Bush setup, which significantly improves articulation and ride quality. Importantly, they maintain the original height mounting position, ensuring that there is no compromise in clearance due to a drop box configuration.
Key features of the Blackhawk 4×4 Radius Arms include:
- Forged from a high-strength billet of chromoly 4150 for exceptional durability.
- Increased caster for improved steering response and stability.
- Enhanced clearance to the tie rod arm, reducing the risk of interference.
- Greater ground clearance compared to original equipment, allowing for better off-road performance.
- Extended by 15mm to correct wheelbase on lifted vehicles, ensuring optimal alignment.
- Hybrid rubber bushings included for superior vibration dampening and longevity.
- Finished with a Black E-coating for maximum resistance against corrosion and wear.
Product specifications indicate compatibility with lift heights ranging from 3" to 5". For vehicles originally equipped with a DPF, it is essential to select the DPF compatible part number RAFTLCB-DPF, even if the system has been removed subsequently.
Please note that images provided are for illustrative purposes only and may not represent the specific part number being viewed.
Key Features
- Forged from a billet piece of chromoly 4150
- Increased caster
- Increased clearance to tie rod arm
- Increased ground clearance compared to OE
- 15mm longer to correct wheelbase on lifted vehicles
- Hybrid rubber bushings included
- Black E-coating for maximum durability
Product Notes
- Suits 3″ - 5″ Lift Height
- If vehicle came standard with DPF, you must select the DPF compatible part number RAFTLCB-DPF even if the system has since been removed.
Sold as a Pair.
Check vehicle compatibility and select 1 of the following:
* RAFTLCB - for vehicles up to 09/2016 without factory fitted DPF
* RAFTLCB-DPF - for vehicles 09/2016-Onwards with factory fitted DPF
Suits 3" - 5" Lift Height
High quality 4x4 suspension upgrades proudly sold by PPD Performance.
