Description

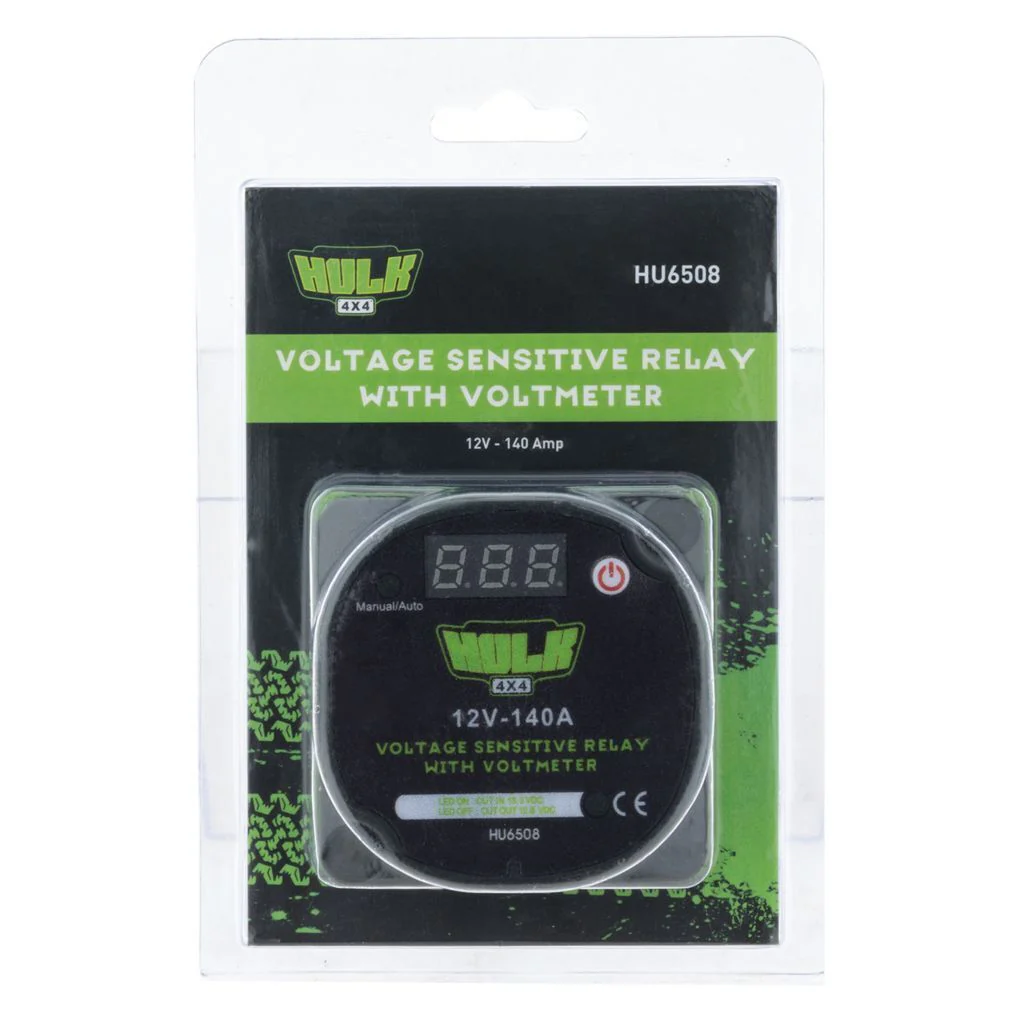

A Voltage Sensitive Relay (VSR) is an essential component for any 4WD enthusiast looking to optimize their dual battery setup. This device allows for simultaneous charging of two batteries. When the engine starts and the primary battery reaches 13.7 volts, the VSR activates, enabling both the starting and auxiliary batteries to charge concurrently.

Specifications include:

• 12 Volt 140 Amp

• Voltage Range: 13.3v - 12.8v

• Continuous Current Rating: 125A

• Intermittent Current Rating: 140A

• Power Consumption: 10mA (Standby), 330mA (Engage), 0mA (Storage Mode)

This VSR is designed for a variety of 12V applications, ensuring reliability and performance in demanding conditions. It automatically senses the input voltage and disconnects the circuit at pre-set voltages, preventing the primary starting battery from discharging.

Constructed with a robust weatherproof body (IP65) and durable silver-tipped contacts, this VSR also features surge protection and an LED indicator to inform users when the unit is engaged.

Ideal for dual battery configurations, this VSR ensures that both batteries are charged while isolating them when the vehicle is off, keeping your starting battery fully charged and ready for action.

For more information, view the product bulletin!

Features

• Designed for dual battery systems

• Compatible with most 12V charging systems

• Includes surge protection

• Simple installation process

• Automatically senses the voltage level of the main battery

• Cut In Voltage: 13.3V

• Cut Out Voltage: 12.8V

• IATF16949-2016 Certified

Specifications

SKU: HU6508

Barcode #: 9356659286601

Brand: 4x4 Enthusiast
